09-48-4119

Affinity Medical Technologies - a Molex company

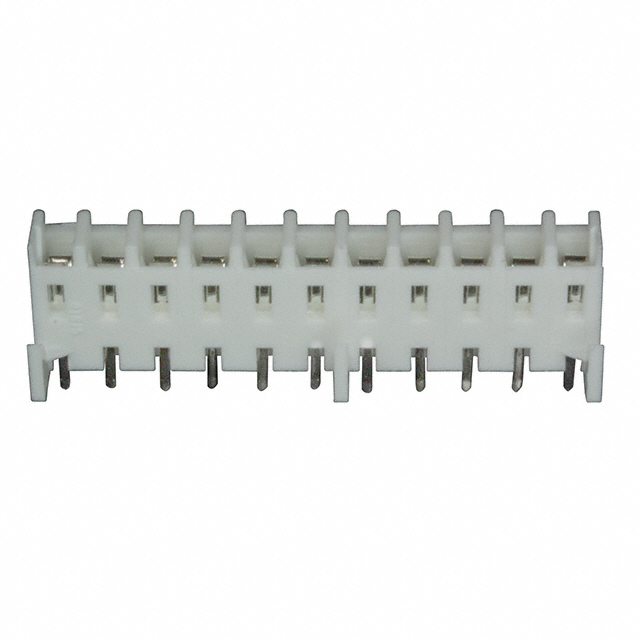

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09-48-4119
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 11POS .156 VERT PCB
Datasheets:	09-48-4119.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47056 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47056 pcs

Reference Price (In US Dollars)

539 pcs: $0.694

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.694

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09-48-4119

Part Number	09-48-4119	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 11POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47056 pcs	Data sheet	09-48-4119.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-4119 0009-48-4119-E 0009484119 0009484119-E 09-48-4119-E 09484119 09484119-E 9484119 A-41815-0039 WM13408
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester
Insulation Height	0.449" (11.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	11 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin
Current Rating	4.5A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.125" (3.18mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle, Bottom Entry
Applications	Automotive, General Purpose, Medical, Telecommunications
