0936013500

Affinity Medical Technologies - a Molex company

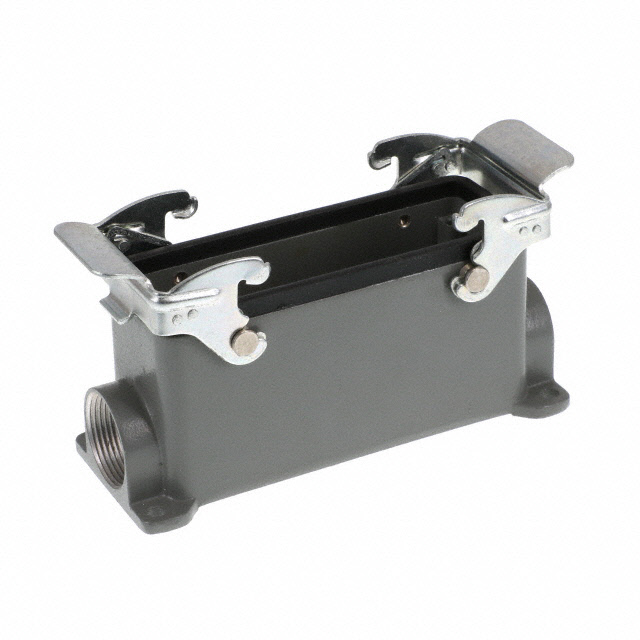

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0936013500
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN BASE SIDE ENTRY SZ24B PG21
Datasheets:	0936013500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3479 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3479 pcs

Reference Price (In US Dollars)

1 pcs: $10.649

10 pcs: $9.613

25 pcs: $9.21

50 pcs: $8.635

100 pcs: $8.347

250 pcs: $7.886

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.649

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0936013500

Part Number	0936013500	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN BASE SIDE ENTRY SZ24B PG21	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3479 pcs	Data sheet	0936013500.pdf
Thread Size	PG21	Style	Side Entry
Size / Dimension	5.650" L x 2.244" W x 2.480" H (143.50mm x 57.00mm x 63.00mm)	Size	24B
Series	GWconnect	Packaging	Bulk
Other Names	0936013500-ND 7824.6326.0 93601-3500 936013500 WM21313	Operating Temperature	-40°C ~ 125°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lock Location	Locking Clip (2) on Base Bottom
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP66 - Dust Tight, Water Resistant
Housing Material	Aluminum Alloy, Die Cast	Housing Finish	Powder Coated
Housing Color	-	Features	-
Connector Type	Base - Box Mount
