1053092302

Affinity Medical Technologies - a Molex company

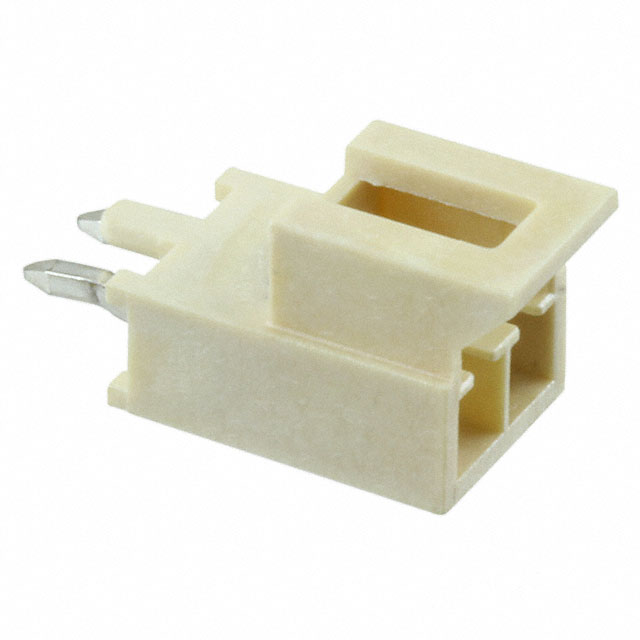

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053092302
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR VT SGL KNK 2CKT 30A
Datasheets:	1.1053092302.pdf 2.1053092302.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	96519 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 96519 pcs

Reference Price (In US Dollars)

1 pcs: $0.372

10 pcs: $0.329

300 pcs: $0.258

600 pcs: $0.232

1200 pcs: $0.206

5100 pcs: $0.181

10200 pcs: $0.171

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053092302

Part Number	1053092302	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR VT SGL KNK 2CKT 30A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	96519 pcs	Data sheet	1.1053092302.pdf 2.1053092302.pdf
Voltage Rating	250V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105309	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105309-2302 WM15050
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Material Flammability Rating	-
Mated Stacking Heights	21.30mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.356" (9.05mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 2 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
