1053142308

Affinity Medical Technologies - a Molex company

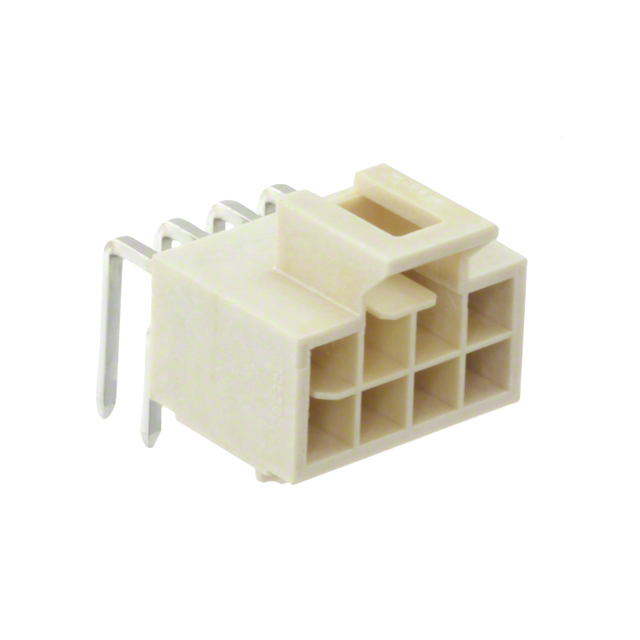

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053142308
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR RA DLR 8CKT 30AU WH
Datasheets:	1.1053142308.pdf 2.1053142308.pdf 3.1053142308.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32383 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32383 pcs

Reference Price (In US Dollars)

1 pcs: $0.994

10 pcs: $0.954

156 pcs: $0.795

624 pcs: $0.676

1092 pcs: $0.576

5148 pcs: $0.517

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.994

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053142308

Part Number	1053142308	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR RA DLR 8CKT 30AU WH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32383 pcs	Data sheet	1.1053142308.pdf 2.1053142308.pdf 3.1053142308.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105314	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105314-2308 WM15182
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Material Flammability Rating	-
Mated Stacking Heights	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.247" (6.28mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
