15-24-7183

Affinity Medical Technologies - a Molex company

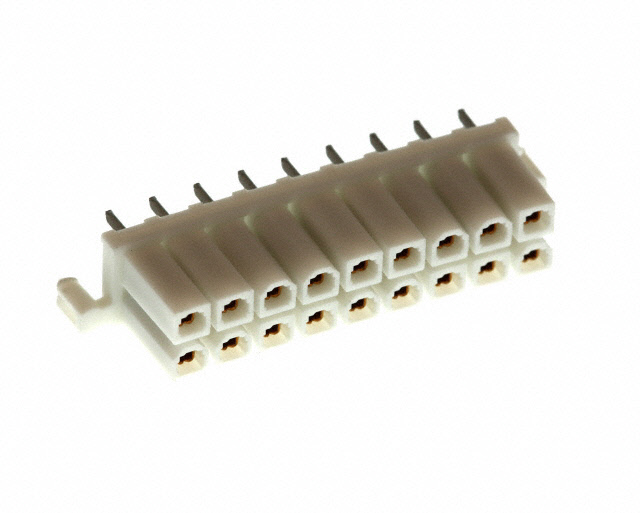

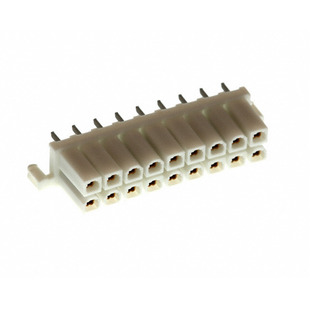

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-24-7183
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 18POS 4.2MM STR GOLD
Datasheets:	15-24-7183.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12096 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12096 pcs

Reference Price (In US Dollars)

1 pcs: $2.845

10 pcs: $2.72

100 pcs: $2.287

500 pcs: $1.916

1000 pcs: $1.694

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.845

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-24-7183

Part Number	15-24-7183	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 18POS 4.2MM STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12096 pcs	Data sheet	15-24-7183.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	Mini-Fit BMI 42385
Row Spacing - Mating	0.165" (4.20mm)	Pitch - Mating	0.165" (4.20mm)
Packaging	Tray	Other Names	0015-24-7183 0015-24-7183-E 0015247183 0015247183-E 15-24-7183-E 15247183 15247183-E A-42385-18B2 WM17733
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.446" (11.33mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Push-Pull	Detailed Description	18 Position Receptacle Connector 0.165" (4.20mm) Through Hole Gold
Current Rating	-	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	General Purpose, Industrial, Medical, Telecommunications
