1511181004

Affinity Medical Technologies - a Molex company

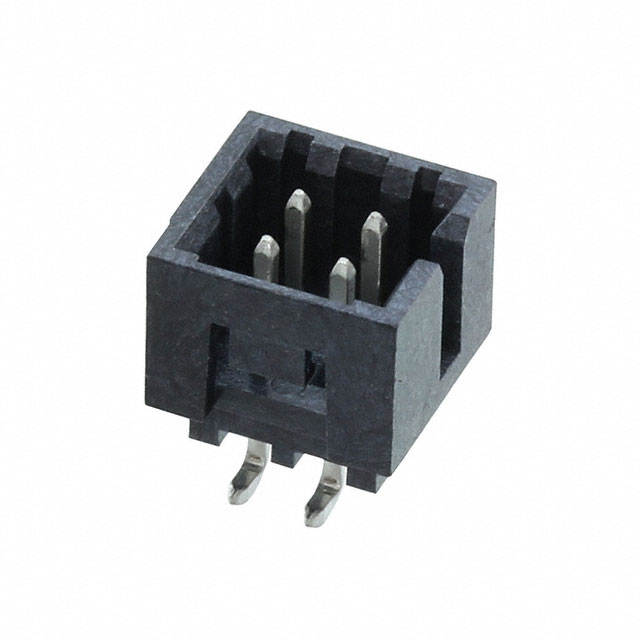

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1511181004
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MGRID SHRD HDR SMT/OPEG&CAP 2.5S
Datasheets:	1.1511181004.pdf 2.1511181004.pdf 3.1511181004.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98260 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 98260 pcs

Reference Price (In US Dollars)

1 pcs: $0.309

80 pcs: $0.246

160 pcs: $0.236

560 pcs: $0.193

1040 pcs: $0.171

5040 pcs: $0.15

10000 pcs: $0.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.309

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1511181004

Part Number	1511181004	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MGRID SHRD HDR SMT/OPEG&CAP 2.5S	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98260 pcs	Data sheet	1.1511181004.pdf 2.1511181004.pdf 3.1511181004.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Milli-Grid 151118	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	151118-1004 WM16125
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.252" (6.40mm)	Insulation Color	Black
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Detent Lock	Detailed Description	Connector Header Surface Mount 4 position 0.079" (2.00mm)
Current Rating	2A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Length - Mating	0.142" (3.61mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Telecommunications
