1720640012

Affinity Medical Technologies - a Molex company

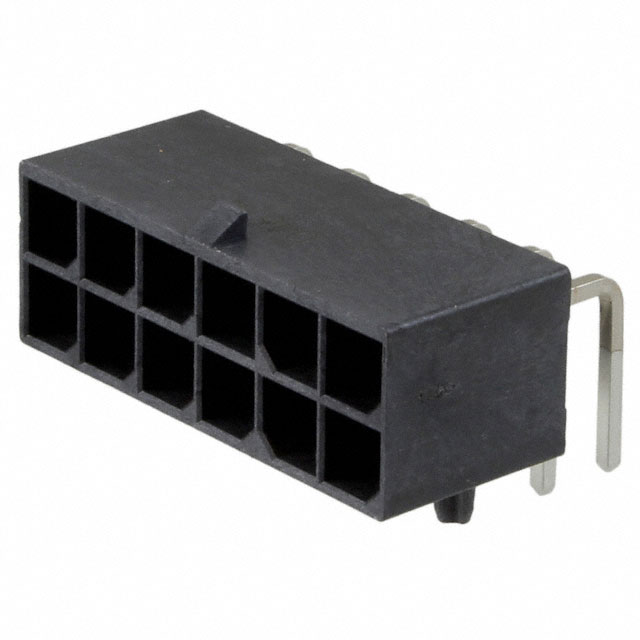

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1720640012
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MEGA-FIT RA HDR 12 CKT GOLD
Datasheets:	1.1720640012.pdf 2.1720640012.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10872 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10872 pcs

Reference Price (In US Dollars)

1 pcs: $3.266

10 pcs: $3.123

448 pcs: $2.342

896 pcs: $2.058

1344 pcs: $1.945

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.266

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1720640012

Part Number	1720640012	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MEGA-FIT RA HDR 12 CKT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10872 pcs	Data sheet	1.1720640012.pdf 2.1720640012.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mega-Fit	Row Spacing - Mating	0.224" (5.70mm)
Pitch - Mating	0.224" (5.70mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172064-0012 WM10396
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.572" (14.53mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide, Glow Wire Compliant
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.224" (5.70mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper
Contact Length - Post	0.142" (3.60mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Telecommunications
