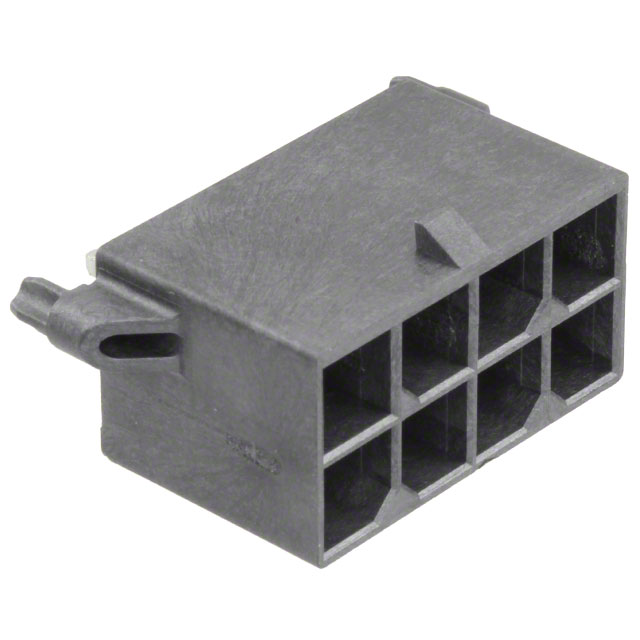

Part Number | 1720651008 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | VERT HDR ASSY 8 CKT 30 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7530 pcs | Data sheet | 1.1720651008.pdf2.1720651008.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
Series | Mega-Fit | Row Spacing - Mating | 0.224" (5.70mm) |
Pitch - Mating | 0.224" (5.70mm) | Packaging | Tray |
Overall Contact Length | - | Other Names | 172065-1008 1720651008-ND WM11218 |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 8 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.583" (14.80mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.224" (5.70mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper |
Contact Length - Post | 0.147" (3.73mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Telecommunications |
