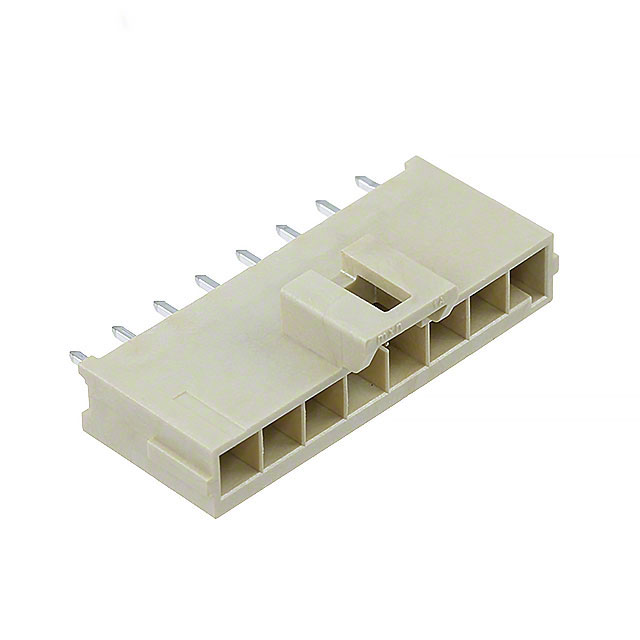

Part Number | 1722862108 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | ULTRAFIT VERT TIN PLATED NAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 56464 pcs | Data sheet | 1.1722862108.pdf2.1722862108.pdf |
Voltage Rating | 400V | Termination | Kinked Pin, Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Ultra-Fit 172286 | Row Spacing - Mating | - |
Pitch - Mating | 0.138" (3.50mm) | Packaging | Tray |
Overall Contact Length | - | Other Names | WM11686 |
Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 8 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 26.99mm |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.465" (11.80mm) | Insulation Color | Natural |
Ingress Protection | - | Features | Board Guide |
Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position 0.138" (3.50mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
