1722981212

Affinity Medical Technologies - a Molex company

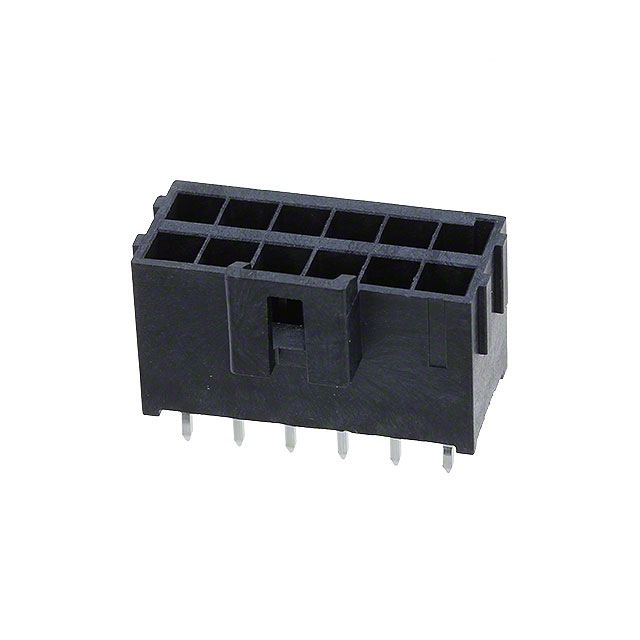

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1722981212
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	ULTRAFIT VERT 15 AU PLATED BLK
Datasheets:	1.1722981212.pdf 2.1722981212.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28208 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28208 pcs

Reference Price (In US Dollars)

1 pcs: $1.198

10 pcs: $1.149

100 pcs: $0.958

500 pcs: $0.814

1000 pcs: $0.694

5000 pcs: $0.623

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.198

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1722981212

Part Number	1722981212	Manufacturer	Affinity Medical Technologies - a Molex company
Description	ULTRAFIT VERT 15 AU PLATED BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28208 pcs	Data sheet	1.1722981212.pdf 2.1722981212.pdf
Voltage Rating	400V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Ultra-Fit 172298	Row Spacing - Mating	0.181" (4.60mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	WM11746
Operating Temperature	-40°C ~ 120°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	26.99mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.465" (11.80mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole 12 position 0.138" (3.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
