19070-0005

Affinity Medical Technologies - a Molex company

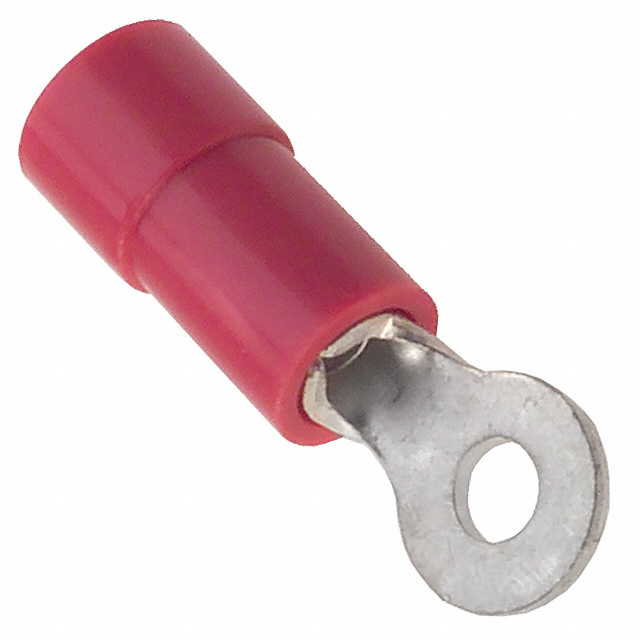

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19070-0005
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RING CIRC 18-22AWG #2 CRIMP
Datasheets:	1.19070-0005.pdf 2.19070-0005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	554744 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 554744 pcs

Reference Price (In US Dollars)

1 pcs: $0.056

10 pcs: $0.054

25 pcs: $0.046

50 pcs: $0.04

100 pcs: $0.037

250 pcs: $0.033

500 pcs: $0.032

1000 pcs: $0.026

2500 pcs: $0.024

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.056

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19070-0005

Part Number	19070-0005	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RING CIRC 18-22AWG #2 CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	554744 pcs	Data sheet	1.19070-0005.pdf 2.19070-0005.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.235" (5.96mm)
Thickness	0.028" (0.71mm)	Termination	Crimp
Terminal Type	Circular	Stud/Tab Size	2 Stud
Series	InsulKrimp	Packaging	Bulk
Other Names	019070-0005 019070-0005-C 0190700005 0190700005-C 190-70-0005-C 19070-0005-C 190700005 190700005-C AA-220-02X WM18271	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Length - Overall	0.709" (18.01mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Diameter	0.145" (3.68mm)	Insulation	Insulated
Features	Serrated Termination	Detailed Description	Ring Terminal Connector 2 Stud Circular 18-22 AWG Crimp
Contact Material	Copper	Contact Finish	Tin
Color	Red
