19428-0012

Affinity Medical Technologies - a Molex company

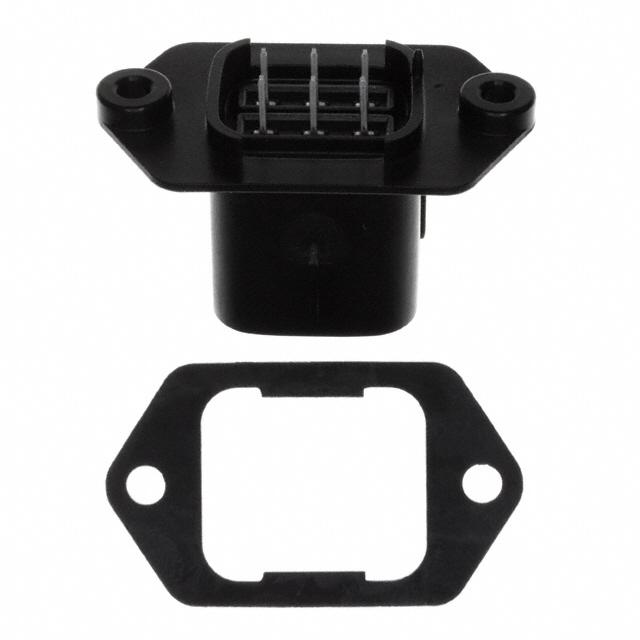

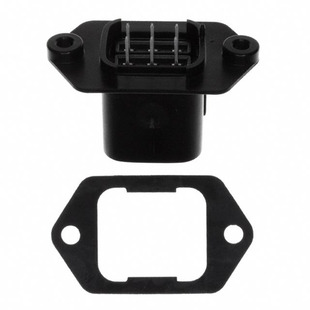

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19428-0012
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 6POS VERTIAL TIN
Datasheets:	1.19428-0012.pdf 2.19428-0012.pdf 3.19428-0012.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19047 pcs

Reference Price (In US Dollars)

1 pcs: $1.749

10 pcs: $1.677

100 pcs: $1.398

500 pcs: $1.188

1000 pcs: $1.013

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.749

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19428-0012

Part Number	19428-0012	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 6POS VERTIAL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19047 pcs	Data sheet	1.19428-0012.pdf 2.19428-0012.pdf 3.19428-0012.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX150L 19428	Row Spacing - Mating	0.236" (6.00mm)
Pitch - Mating	0.230" (5.84mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0194280012 194280012 WM17511
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Panel Mount, Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	1.094" (27.80mm)	Insulation Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Board Guide, Mounting Flange
Fastening Type	Locking Ramp	Detailed Description	Connector Header Panel Mount, Through Hole 6 position 0.230" (5.84mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial
