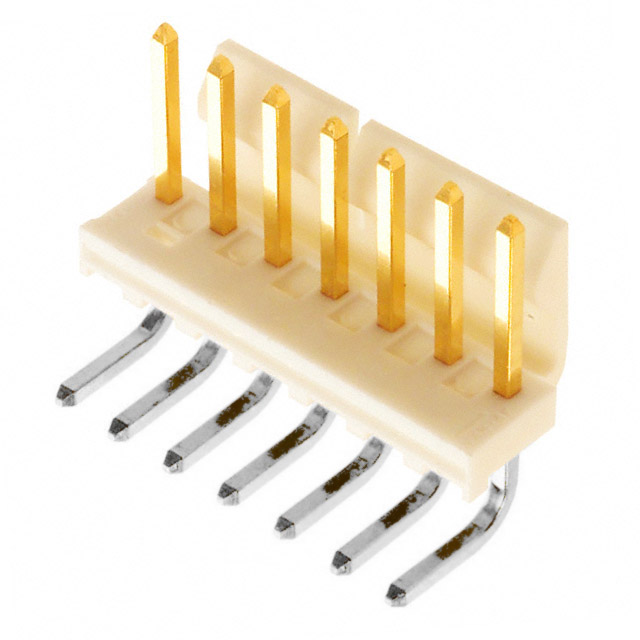

Part Number | 26-61-5070 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN HEADER 7POS .156 R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 28156 pcs | Data sheet | 1.26-61-5070.pdf2.26-61-5070.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 1 Wall |
Series | KK 41792 | Row Spacing - Mating | - |
Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 0026615070 26-61-5070-P 26615070 41792-0024 WM5240 |
Operating Temperature | - | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 7 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
Insulation Height | 0.394" (10.00mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.156" (3.96mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | - |
Contact Length - Post | 0.156" (3.96mm) | Contact Length - Mating | 0.450" (11.43mm) |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
