5018648090

Affinity Medical Technologies - a Molex company

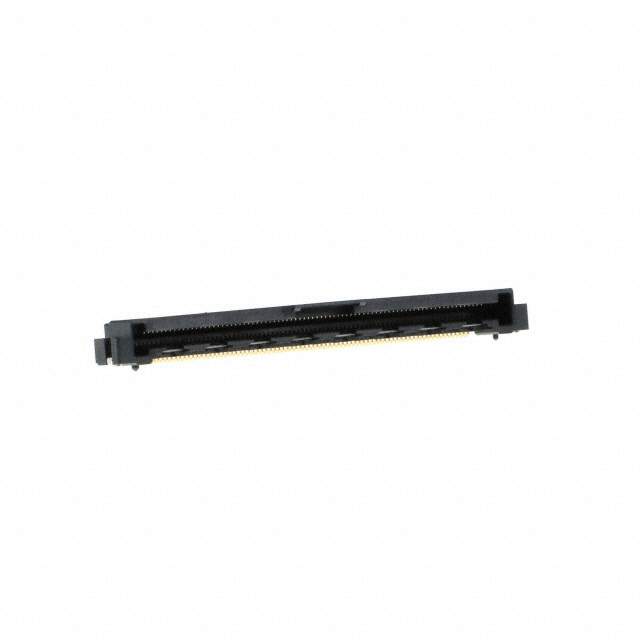

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5018648090
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 80POS 0.50MM R/A
Datasheets:	1.5018648090.pdf 2.5018648090.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12579 pcs

Reference Price (In US Dollars)

1 pcs: $2.894

10 pcs: $2.768

25 pcs: $2.516

50 pcs: $2.39

100 pcs: $2.327

250 pcs: $2.076

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.894

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5018648090

Part Number	5018648090	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 80POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12579 pcs	Data sheet	1.5018648090.pdf 2.5018648090.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501864	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	WM20782DKR
Operating Temperature	-40°C ~ 85°C	Number of Positions	80
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	Black
Height Above Board	0.191" (4.85mm)	Flat Flex Type	FFC
Features	Board Guide, Solder Retention	FFC, FCB Thickness	0.30mm
Detailed Description	80 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Copper Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Notched	Actuator Material	-
Actuator Color	-
