502250-4191

Affinity Medical Technologies - a Molex company

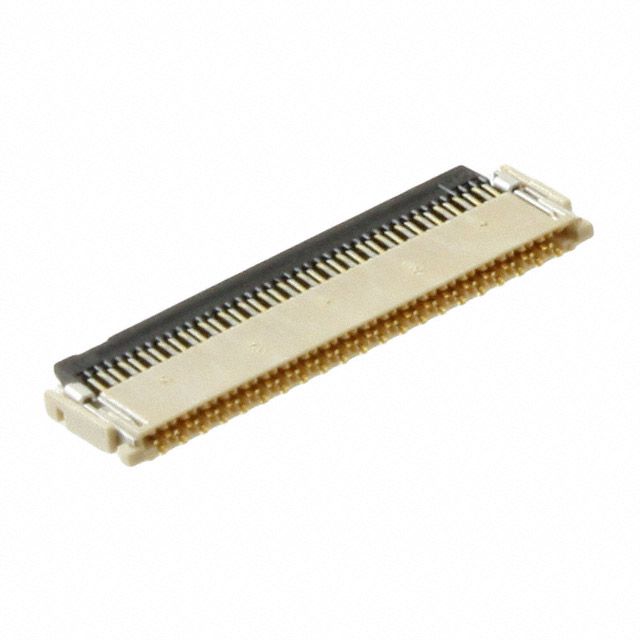

Image may be representation. See specifications for product details.

Product Overview

Part Number:	502250-4191
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 41POS 0.30MM R/A
Datasheets:	502250-4191.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18954 pcs

Reference Price (In US Dollars)

1 pcs: $1.672

10 pcs: $1.604

25 pcs: $1.47

50 pcs: $1.404

100 pcs: $1.337

250 pcs: $1.17

500 pcs: $1.136

1000 pcs: $0.969

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.672

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 502250-4191

Part Number	502250-4191	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 41POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18954 pcs	Data sheet	502250-4191.pdf
Voltage Rating	50V	Termination	Solder
Series	BackFlip, Easy-On 502250	Pitch	0.012" (0.30mm)
Packaging	Original-Reel®	Other Names	WM2239DKR
Operating Temperature	-25°C ~ 85°C	Number of Positions	41
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Locking Feature	Flip Lock, Backlock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	Natural
Height Above Board	0.035" (0.88mm)	Flat Flex Type	FPC
Features	-	FFC, FCB Thickness	0.20mm
Detailed Description	41 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle	Current Rating	0.2A
Contact Material	Copper Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Notched or Tabbed	Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Color	Black
