5023861570

Affinity Medical Technologies - a Molex company

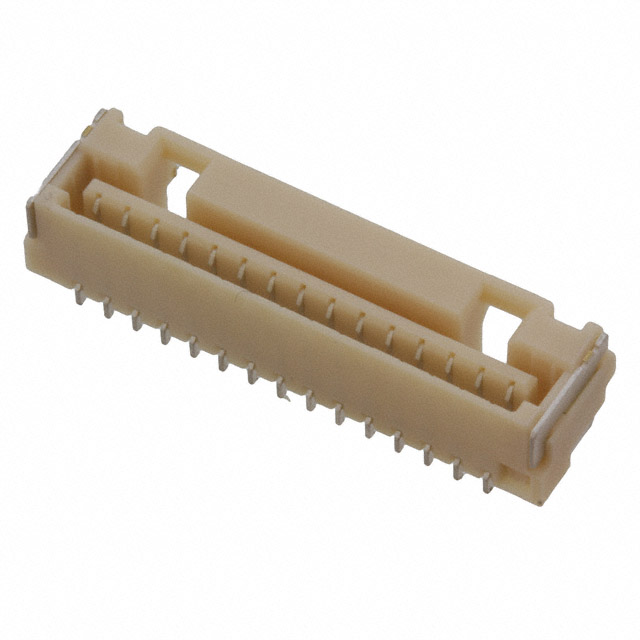

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5023861570
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 15POS 1.25MM R/A SMD
Datasheets:	5023861570.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	78663 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 78663 pcs

Reference Price (In US Dollars)

1 pcs: $0.474

10 pcs: $0.416

100 pcs: $0.359

500 pcs: $0.293

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.474

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5023861570

Part Number	5023861570	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 15POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78663 pcs	Data sheet	5023861570.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 502386
Row Spacing - Mating	-	Pitch - Mating	0.049" (1.25mm)
Packaging	Cut Tape (CT)	Other Names	WM4958CT
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	15
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Resin
Insulation Height	0.215" (5.45mm)	Insulation Color	Natural
Ingress Protection	-	Features	Solder Retention
Fastening Type	Latch Holder	Detailed Description	15 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Tin
Current Rating	1A	Contact Type	Forked
Contact Shape	-	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
