70553-0024

Affinity Medical Technologies - a Molex company

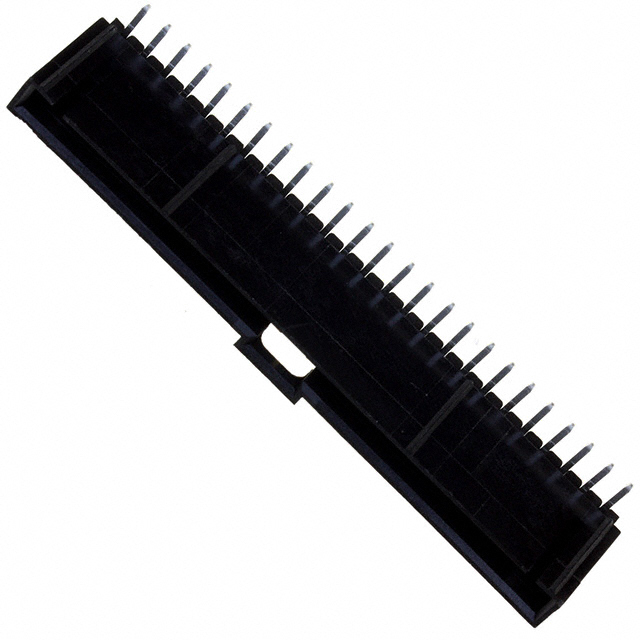

Image may be representation. See specifications for product details.

Product Overview

Part Number:	70553-0024
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 25POS .100 R/A GOLD
Datasheets:	1.70553-0024.pdf 2.70553-0024.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17008 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17008 pcs

Reference Price (In US Dollars)

1 pcs: $2.107

10 pcs: $2.023

100 pcs: $1.686

500 pcs: $1.433

1000 pcs: $1.222

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.107

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 70553-0024

Part Number	70553-0024	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 25POS .100 R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17008 pcs	Data sheet	1.70553-0024.pdf 2.70553-0024.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70553	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0705530024 70553-0024-TB8 705530024 A705530024 WM4923
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	25
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.215" (5.45mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole, Right Angle 25 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	74.8µin (1.90µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
