90120-0131

Affinity Medical Technologies - a Molex company

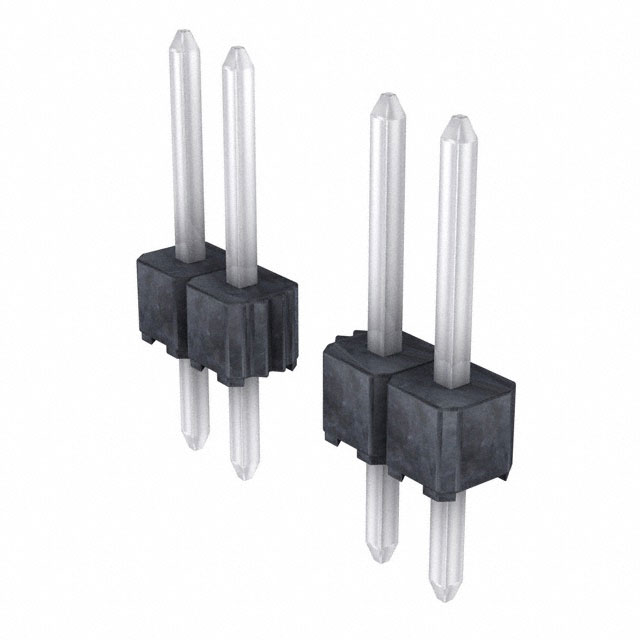

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90120-0131
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 11POS .100" STR TIN
Datasheets:	90120-0131.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80890 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 80890 pcs

Reference Price (In US Dollars)

1 pcs: $0.46

10 pcs: $0.403

100 pcs: $0.348

500 pcs: $0.284

1000 pcs: $0.253

5000 pcs: $0.221

10000 pcs: $0.21

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.46

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90120-0131

Part Number	90120-0131	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 11POS .100" STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80890 pcs	Data sheet	90120-0131.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid III 90120	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.478" (12.15mm)	Other Names	0901200131 901200131 WM8081
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.098" (2.50mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 11 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.114" (2.90mm)	Contact Length - Mating	0.266" (6.75mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose
