90325-7018

Affinity Medical Technologies - a Molex company

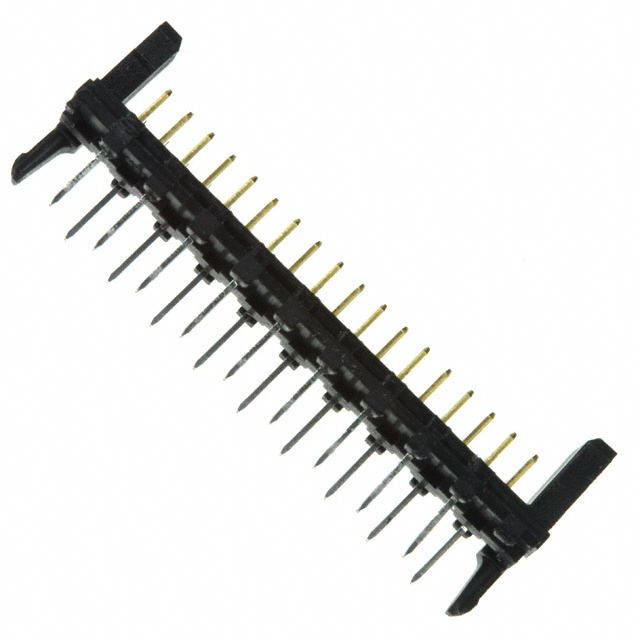

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90325-7018
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 18PS 1.27MM GOLD T/H
Datasheets:	1.90325-7018.pdf 2.90325-7018.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	107214 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 107214 pcs

Reference Price (In US Dollars)

2394 pcs: $0.306

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.306

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90325-7018

Part Number	90325-7018	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 18PS 1.27MM GOLD T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	107214 pcs	Data sheet	1.90325-7018.pdf 2.90325-7018.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex PF-50 90325	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	090325-7018 090325-7018-E 0903257018 0903257018-E 90325-7018-E 903257018 903257018-E WM19207
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.252" (6.40mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 18 position 0.050" (1.27mm)
Current Rating	1.2A	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Brass
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	24.0µin (0.61µm)
Contact Finish - Post	-	Contact Finish - Mating	Palladium-Nickel
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
