1-102618-5

Agastat Relays / TE Connectivity

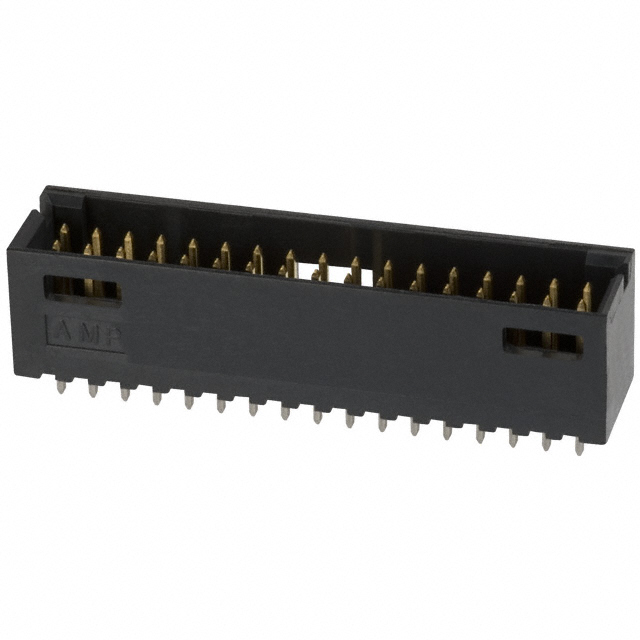

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-102618-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT .100 34POS 15AU
Datasheets:	1-102618-5.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	12071 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12071 pcs

Reference Price (In US Dollars)

1 pcs: $2.56

96 pcs: $2.133

192 pcs: $2.027

576 pcs: $1.707

1056 pcs: $1.493

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.56

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-102618-5

Part Number	1-102618-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT .100 34POS 15AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	12071 pcs	Data sheet	1-102618-5.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.533" (13.55mm)	Other Names	1-102618-5-ND 11026185 A26745
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Thermoplastic
Insulation Height	0.440" (11.18mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole 34 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.125" (3.18mm)	Contact Length - Mating	0.318" (8.08mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
