1-1586043-0

Agastat Relays / TE Connectivity

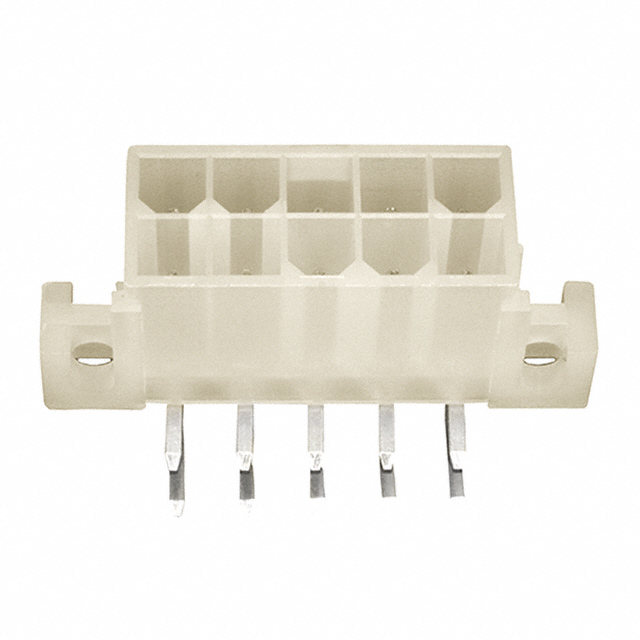

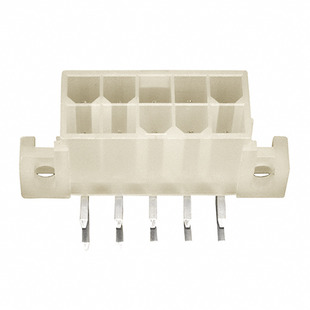

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1586043-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 10POS R/A W/FLANGE
Datasheets:	1-1586043-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	83327 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 83327 pcs

Reference Price (In US Dollars)

1 pcs: $0.386

10 pcs: $0.339

100 pcs: $0.293

500 pcs: $0.239

1000 pcs: $0.213

5000 pcs: $0.186

10000 pcs: $0.177

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.386

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1586043-0

Part Number	1-1586043-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 10POS R/A W/FLANGE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	83327 pcs	Data sheet	1-1586043-0.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A30630
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.386" (9.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	Mounting Flange
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.165" (4.20mm)
Current Rating	9A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass Alloy
Contact Length - Post	0.142" (3.60mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	80.0µin (2.03µm)	Contact Finish Thickness - Mating	80.0µin (2.03µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
