1-2013519-0

Agastat Relays / TE Connectivity

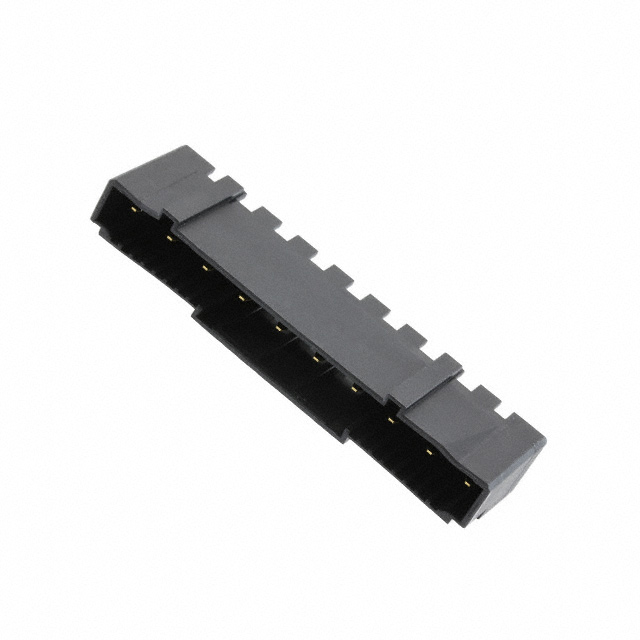

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-2013519-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC D3900 H-HDR ASSY 10P X T
Datasheets:	1-2013519-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13677 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13677 pcs

Reference Price (In US Dollars)

1 pcs: $2.167

12 pcs: $2.077

30 pcs: $1.897

54 pcs: $1.806

102 pcs: $1.716

252 pcs: $1.535

504 pcs: $1.445

1002 pcs: $1.264

2502 pcs: $1.201

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.167

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-2013519-0

Part Number	1-2013519-0	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC D3900 H-HDR ASSY 10P X T	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13677 pcs	Data sheet	1-2013519-0.pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-3900	Row Spacing - Mating	-
Pitch - Mating	0.295" (7.50mm)	Packaging	Tube
Overall Contact Length	-	Other Names	A118575
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic, Polyester, Glass Filled
Insulation Height	0.512" (13.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.295" (7.50mm)
Current Rating	-	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	General Purpose, Industrial
