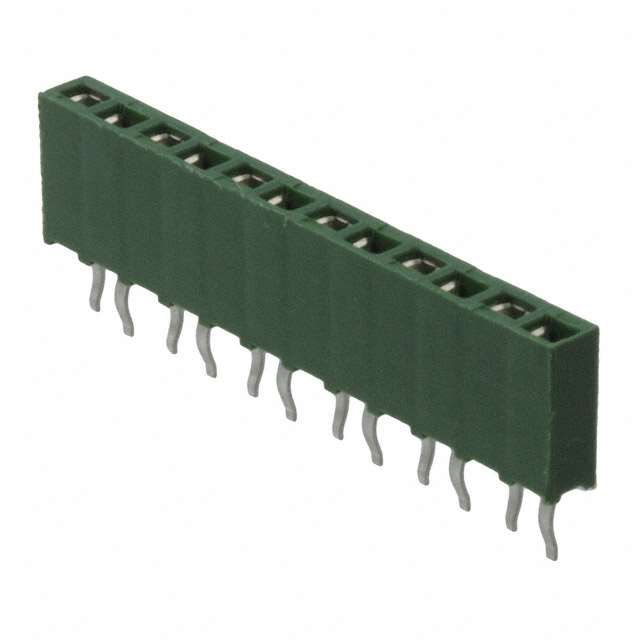

Part Number | 1-215297-2 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN RCPT 12POS .100 VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 37614 pcs | Data sheet | 1-215297-2.pdf |
Voltage Rating | - | Termination | Kinked Pin, Solder |
Style | Board to Board | Series | AMPMODU HV-100 |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tray | Other Names | 1-215297-2-ND 12152972 A106614 |
Operating Temperature | - | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 12 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
Insulation Height | 0.276" (7.00mm) | Insulation Color | Green |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
Current Rating | - | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
