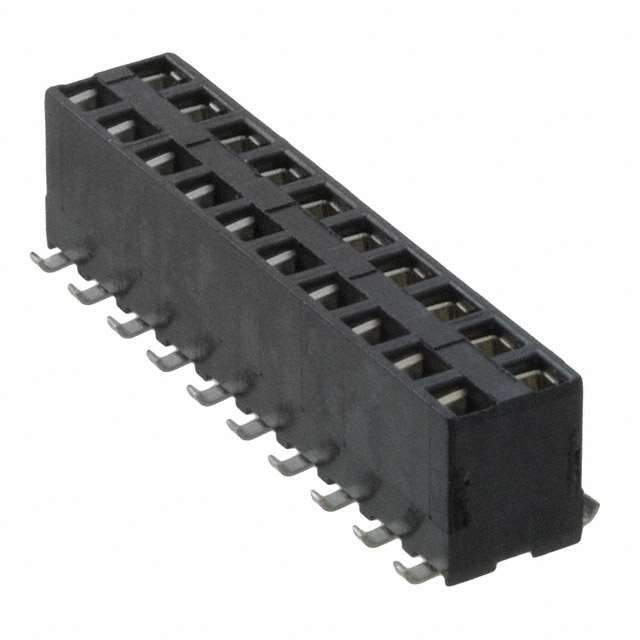

Part Number | 1-969973-0 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN RCPT HV-100 VERT DUAL 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 24816 pcs | Data sheet | 1-969973-0.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board | Series | AMPMODU HV-100 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Original-Reel® | Other Names | A107030DKR |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 20 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.244" (6.20mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold |
Current Rating | - | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | - | Contact Finish Thickness - Post | 98.4µin (2.50µm) |
Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
Applications | - |
