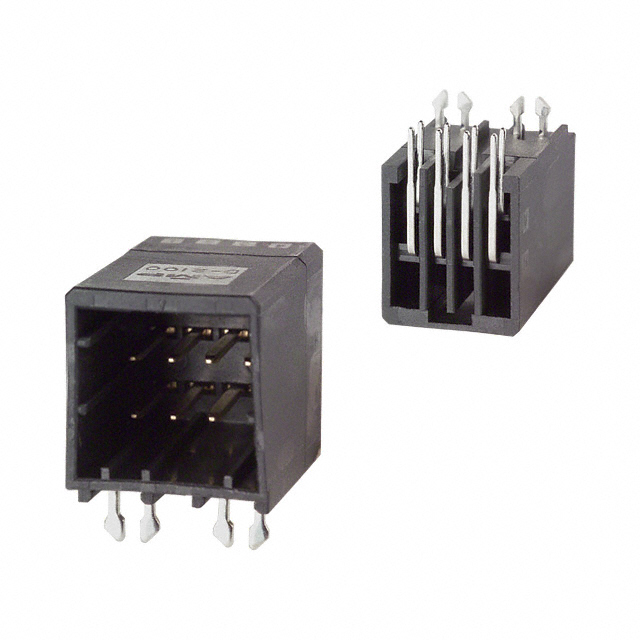

Part Number | 1376009-2 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN HEADER 8POS R/A DUAL KEY-Y | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 37619 pcs | Data sheet | 1376009-2.pdf |
Voltage Rating | 250VAC | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Dynamic D-2100 | Row Spacing - Mating | - |
Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 13760092 A29823 |
Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 8 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
Insulation Height | 0.579" (14.70mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Lock |
Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm) |
Current Rating | 5A | Contact Type | Tab |
Contact Shape | Rectangular | Contact Material | Copper Alloy |
Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | General Purpose, Industrial |
