1571998-1

Agastat Relays / TE ConnectivityAgastat Relays / TE Connectivity

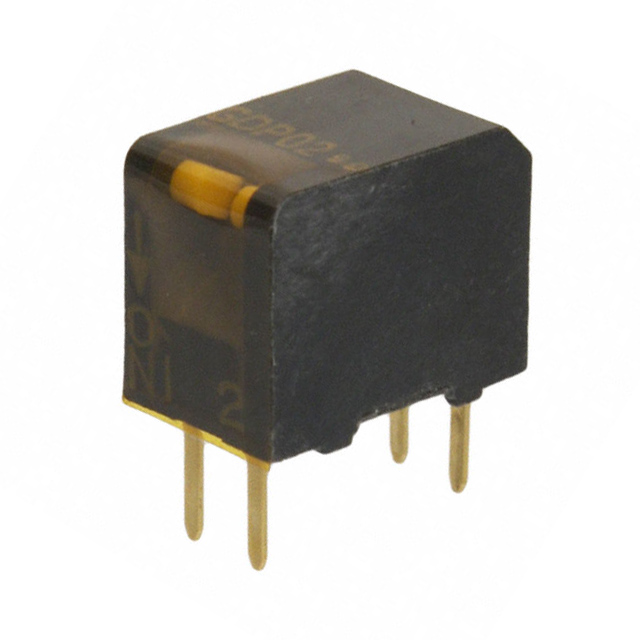

1571998-1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1571998-1
Manufacturer/Brand: Agastat Relays / TE Connectivity
Product description SWITCH PIANO DIP SPST 25MA 24V
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 3799 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 3799 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1571998-1

Part Number 1571998-1 Manufacturer Agastat Relays / TE Connectivity
Description SWITCH PIANO DIP SPST 25MA 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3799 pcs Data sheet
Washable Yes Voltage Rating 24VDC
Termination Style PC Pin Series GDP
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names GDP0204 Operating Temperature -30°C ~ 85°C
Number of Positions 2 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 1,000 Cycles
Length 0.238" (6.04mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Above Board 0.303" (7.70mm) Features Tape Seal
Electrical Life 1,000 Cycles Detailed Description Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
Current Rating 25mA Contact Material Copper Alloy
Contact Finish Gold Circuit SPST
Body Material Polyphenylene Sulfide (PPS) Actuator Type Piano
Actuator Level Flush, Recessed
