174146-2

Agastat Relays / TE Connectivity

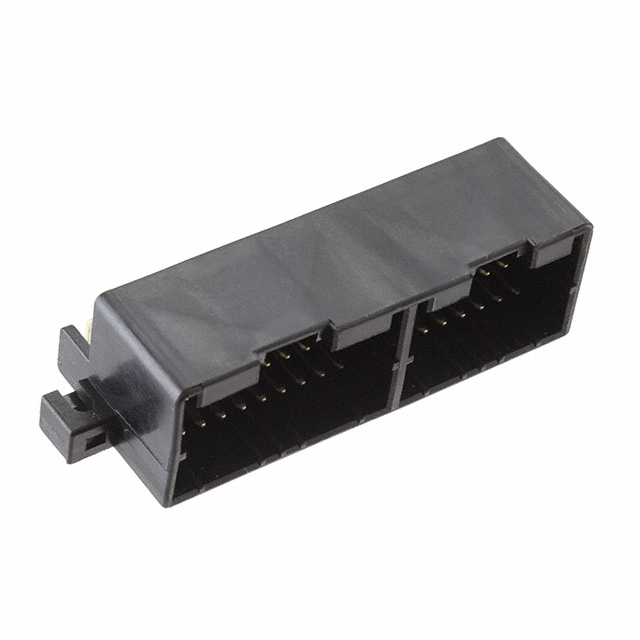

Image may be representation. See specifications for product details.

Product Overview

Part Number:	174146-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RECPT 36POS R/A TIN 2.5MM
Datasheets:	174146-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23494 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23494 pcs

Reference Price (In US Dollars)

1 pcs: $1.566

35 pcs: $1.379

105 pcs: $1.253

525 pcs: $1.065

1015 pcs: $0.909

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.566

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 174146-2

Part Number	174146-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RECPT 36POS R/A TIN 2.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23494 pcs	Data sheet	174146-2.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Multi-Lock	Row Spacing - Mating	0.205" (5.20mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tube
Overall Contact Length	-	Other Names	174146-2-ND A126049
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.658" (16.71mm)	Insulation Color	Black
Ingress Protection	-	Features	Mounting Flange
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 36 position 0.098" (2.50mm)
Current Rating	Varies by Wire Gauge	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Brass
Contact Length - Post	0.157" (4.00mm)	Contact Length - Mating	0.276" (7.00mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	-	Applications	Automotive, General Purpose
