Part Number | 207584-8 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|

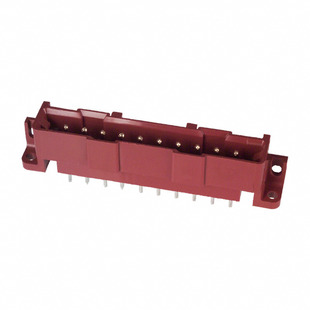

Description | CONN HEADER PIN 10POS VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7092 pcs | Data sheet | 207584-8.pdf |
Voltage Rating | 600V | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Metrimate | Row Spacing - Mating | - |
Pitch - Mating | 0.197" (5.00mm) | Packaging | Tube |
Overall Contact Length | - | Other Names | 2075848 A33315 |
Operating Temperature | -55°C ~ 130°C | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 10 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
Insulation Height | 0.689" (17.50mm) | Insulation Color | Red |
Ingress Protection | - | Features | Mounting Flange |
Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 10 position 0.197" (5.00mm) |
Current Rating | 7.5A | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Brass |
Contact Length - Post | 0.186" (4.72mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
