292227-3

Agastat Relays / TE Connectivity

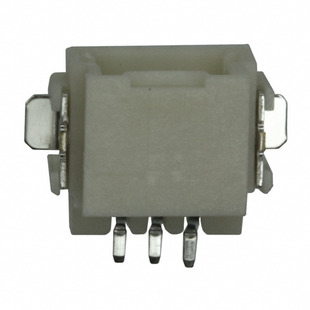

Image may be representation. See specifications for product details.

Product Overview

Part Number:	292227-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS R/A SMD TIN
Datasheets:	292227-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	88239 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 88239 pcs

Reference Price (In US Dollars)

1 pcs: $0.369

10 pcs: $0.324

100 pcs: $0.279

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.369

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 292227-3

Part Number	292227-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS R/A SMD TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88239 pcs	Data sheet	292227-3.pdf
Voltage Rating	50VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini CT	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	2922273 A98696CT
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Insulation Height	0.193" (4.90mm)	Insulation Color	Beige
Ingress Protection	-	Features	Board Guide, Solder Retention
Fastening Type	Detent Lock	Detailed Description	Connector Header Surface Mount, Right Angle 3 position 0.059" (1.50mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	0.094" (2.40mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
