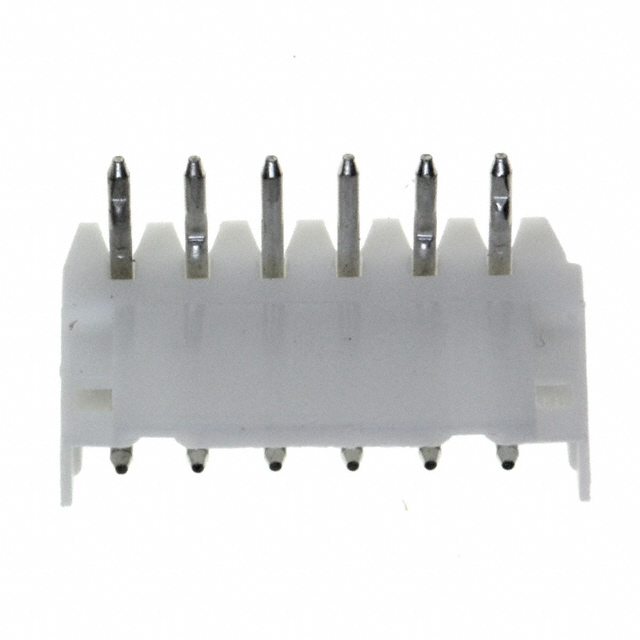

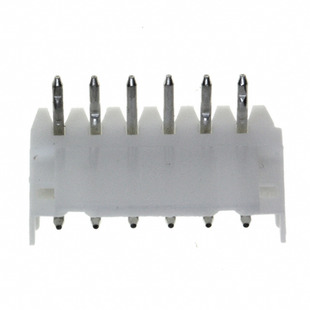

Part Number | 292253-6 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN HEADER 6POS R/A 2MM T/H TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 105974 pcs | Data sheet | 292253-6.pdf |
Voltage Rating | 125VAC | Termination | Kinked Pin, Solder |
Style | Board to Cable/Wire | Shrouding | Shrouded - 3 Wall |
Series | CT | Row Spacing - Mating | - |
Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 2922536 A98578 |
Operating Temperature | - | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 6 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
Insulation Height | 0.157" (4.00mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm) |
Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Brass |
Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.177" (4.50mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | General Purpose |
