3-647630-3

Agastat Relays / TE Connectivity

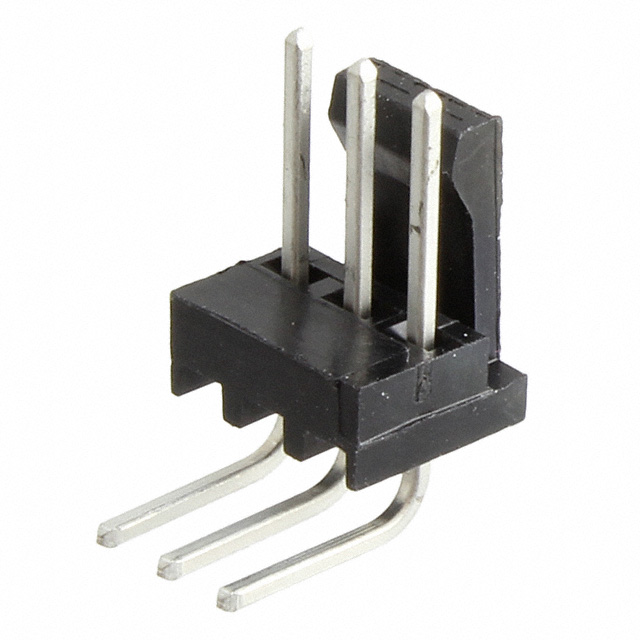

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-647630-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS R/A TIN .100
Datasheets:	3-647630-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	105710 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 105710 pcs

Reference Price (In US Dollars)

1 pcs: $0.327

10 pcs: $0.287

100 pcs: $0.247

500 pcs: $0.202

1000 pcs: $0.18

5000 pcs: $0.157

10000 pcs: $0.15

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.327

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-647630-3

Part Number	3-647630-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS R/A TIN .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105710 pcs	Data sheet	3-647630-3.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-100	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	3-647630-3-ND A113595
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.250" (6.35mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	0.290" (7.37mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
