794120-1

Agastat Relays / TE Connectivity

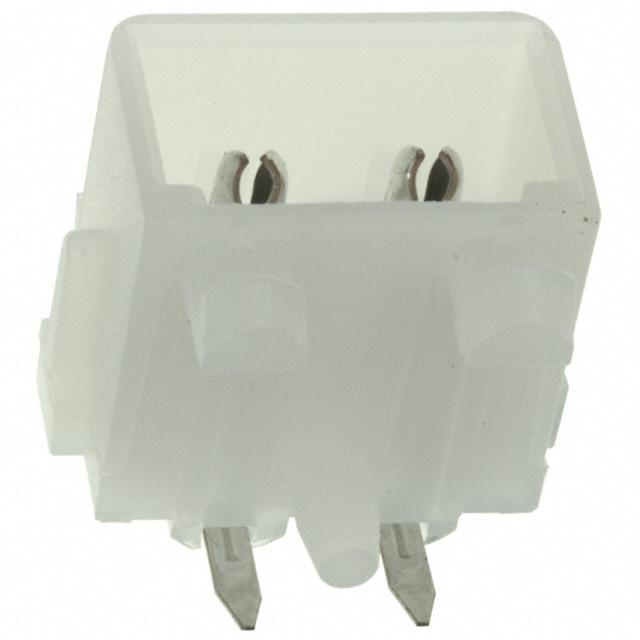

Image may be representation. See specifications for product details.

Product Overview

Part Number:	794120-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER PIN RT/ANG 2POS TIN
Datasheets:	794120-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33919 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33919 pcs

Reference Price (In US Dollars)

1 pcs: $0.889

10 pcs: $0.852

100 pcs: $0.71

500 pcs: $0.603

1000 pcs: $0.515

5000 pcs: $0.461

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.889

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 794120-1

Part Number	794120-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER PIN RT/ANG 2POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33919 pcs	Data sheet	794120-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Commercial MATE-N-LOK	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	7941201 A25753
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.345" (8.76mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Guide, Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 2 position 0.200" (5.08mm)
Current Rating	12A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Copper Alloy
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose
