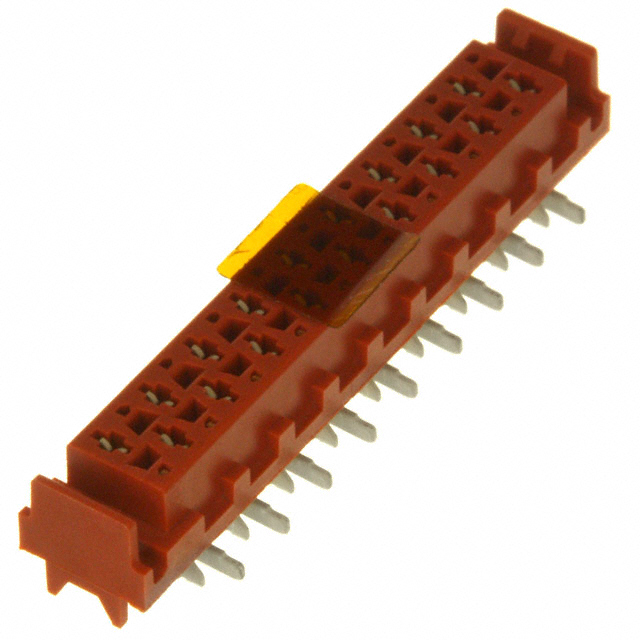

Part Number | 8-338069-8 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN FMALE-ON-BRD 18POS VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 20488 pcs | Data sheet | 8-338069-8.pdf |
Voltage Rating | 100VDC | Termination | Solder |
Style | Board to Board or Cable | Series | Micro-MaTch |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Original-Reel® | Other Names | A99428DKR |
Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 18 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
Insulation Height | 0.209" (5.30mm) | Insulation Color | Red |
Ingress Protection | - | Features | Pick and Place |
Fastening Type | Friction Lock | Detailed Description | 18 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin |
Current Rating | - | Contact Type | Forked |
Contact Shape | - | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
Contact Finish - Mating | Tin | Connector Type | Receptacle |
Applications | Automotive, General Purpose |
