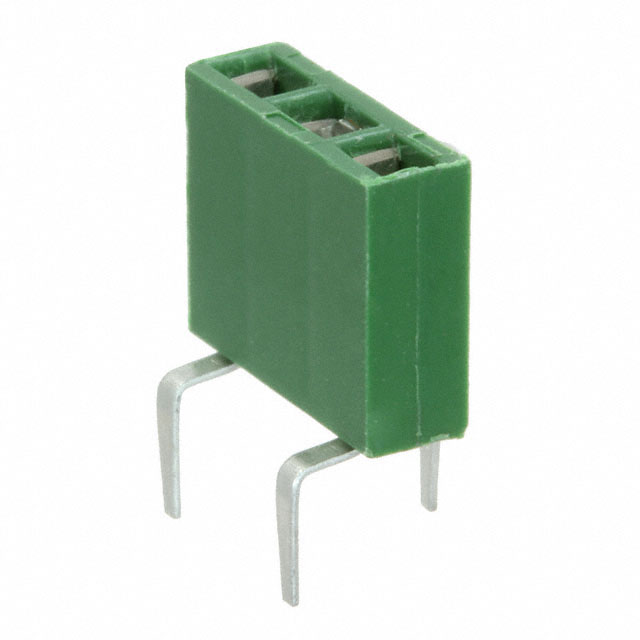

Agastat Relays / TE Connectivity
| Part Number | 829265-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 3POS VERT .100 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83866 pcs | Data sheet | 829265-3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | AMPMODU HV-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 829265-3-ND A121812 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBTP) |
| Insulation Height | 0.256" (6.50mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.120" (3.05mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
