ADF04STTR04

Agastat Relays / TE Connectivity

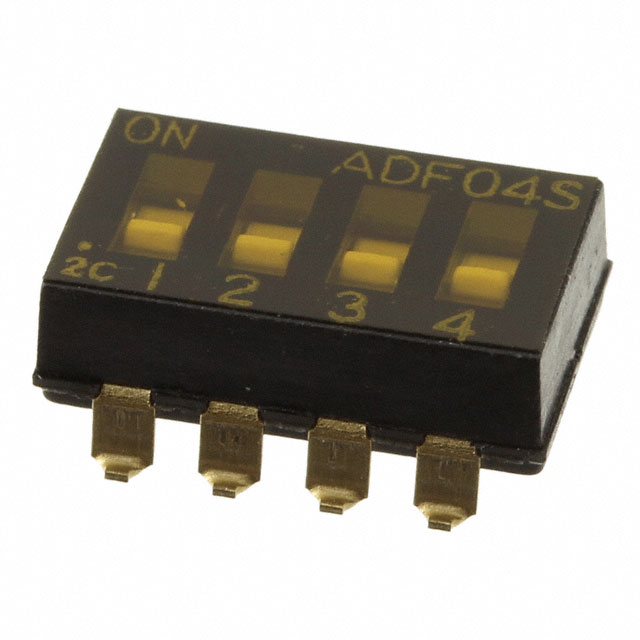

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADF04STTR04
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DIP SPST 100MA 24V
Datasheets:	1.ADF04STTR04.pdf 2.ADF04STTR04.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80854 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 80854 pcs

Reference Price (In US Dollars)

1500 pcs: $0.369

7500 pcs: $0.323

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.369

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADF04STTR04

Part Number	ADF04STTR04	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DIP SPST 100MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80854 pcs	Data sheet	1.ADF04STTR04.pdf 2.ADF04STTR04.pdf
Washable	Yes	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	ADF
Pitch	0.100" (2.54mm), Full	Packaging	Tape & Reel (TR)
Other Names	1-1825059-8 1-1825059-8-ND 1438876 450-2041-2	Operating Temperature	-30°C ~ 85°C
Number of Positions	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Length	0.478" (12.14mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.177" (4.50mm)	Features	Tape Seal
Electrical Life	1,000 Cycles	Detailed Description	Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC
Current Rating	100mA	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit	SPST
Body Material	Polyphenylene Sulfide (PPS)	Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
