D3023

Agastat Relays / TE Connectivity

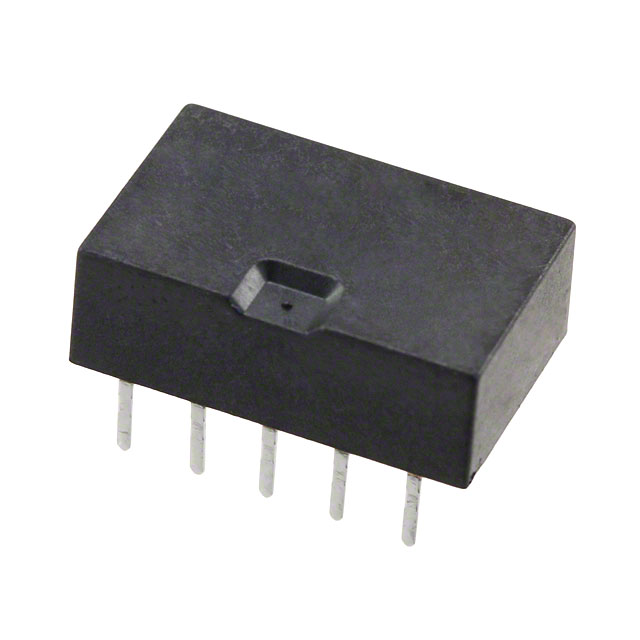

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D3023
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY TELECOM DPDT 2A 250V
Datasheets:	1.D3023.pdf 2.D3023.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20061 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20061 pcs

Reference Price (In US Dollars)

1 pcs: $1.637

10 pcs: $1.533

25 pcs: $1.363

50 pcs: $1.295

100 pcs: $1.226

250 pcs: $1.09

500 pcs: $1.022

1000 pcs: $0.954

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.637

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D3023

Part Number	D3023	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY TELECOM DPDT 2A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20061 pcs	Data sheet	1.D3023.pdf 2.D3023.pdf
Turn On Voltage (Max)	3.5 VDC	Turn Off Voltage (Min)	0.5 VDC
Termination Style	PC Pin	Switching Voltage	250VAC, 220VDC - Max
Series	FP2, AXICOM	Release Time	3ms
Relay Type	Telecom	Packaging	Tube
Other Names	3-1462033-4 D3023-ND PB1066	Operating Temperature	-40°C ~ 85°C
Operate Time	4ms	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	Telecom Relay DPDT (2 Form C) Through Hole	Contact Rating (Current)	2A
Contact Material	Palladium (Pd), Ruthenium (Ru), Gold (Au)	Contact Form	DPDT (2 Form C)
Coil Voltage	5VDC	Coil Type	Non Latching
Coil Resistance	313 Ohms	Coil Power	80 mW
Coil Current	16.0mA
