DPC-3T20CS1X

Agastat Relays / TE Connectivity

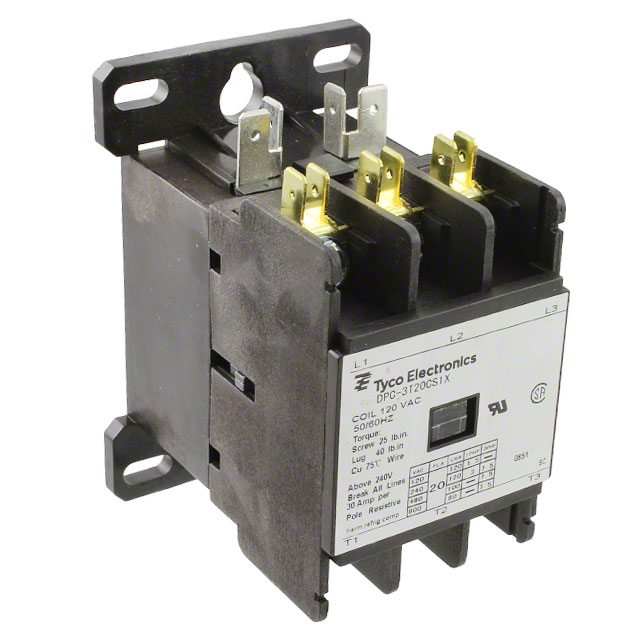

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DPC-3T20CS1X
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY CONTACTOR 3PST 20A 120V
Datasheets:	DPC-3T20CS1X.pdf
RoHs Status	Not applicable / RoHS Compliant
Stock Condition	1876 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1876 pcs

Reference Price (In US Dollars)

25 pcs: $15.348

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$15.348

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DPC-3T20CS1X

Part Number	DPC-3T20CS1X	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY CONTACTOR 3PST 20A 120V	Lead Free Status / RoHS Status	Not applicable / RoHS Compliant
Quantity Available	1876 pcs	Data sheet	DPC-3T20CS1X.pdf
Turn On Voltage (Max)	88 VAC	Turn Off Voltage (Min)	20 VAC
Termination Style	Screw Terminal, Quick Connect - 0.250" (6.3mm)	Switching Voltage	600VAC - Max
Series	DPC	Packaging	Bulk
Other Names	2-1672328-5 DPC-3T20CS1X-ND PB1827	Operating Temperature	-40°C ~ 65°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Not applicable / RoHS Compliant	Features	Test Button
Contact Rating (Current)	20A	Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Form	3PST-NO (DM) (3 Form X)	Coil Voltage	120VAC
Coil Resistance	147 Ohms	Coil Power	6 VA
