EDS10SGRNTU04Q

Agastat Relays / TE Connectivity

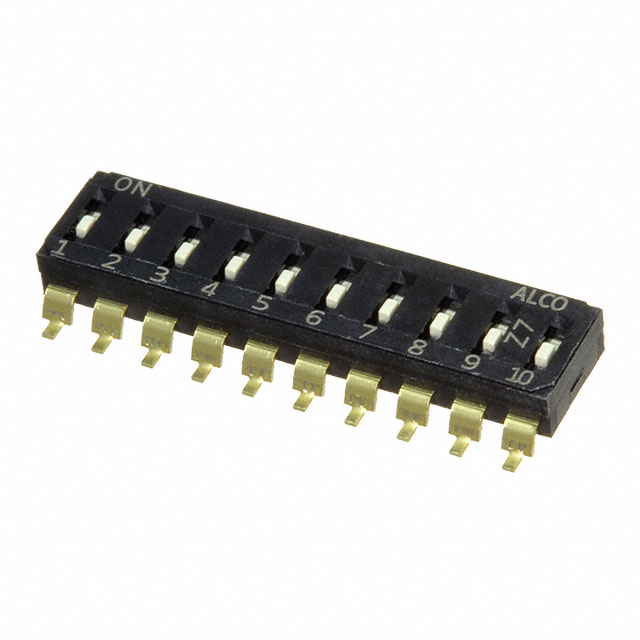

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EDS10SGRNTU04Q
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	END STACK DIP 10P G RECESS TUBE
Datasheets:	EDS10SGRNTU04Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39566 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 39566 pcs

Reference Price (In US Dollars)

1 pcs: $0.783

19 pcs: $0.759

38 pcs: $0.72

57 pcs: $0.673

114 pcs: $0.658

266 pcs: $0.564

513 pcs: $0.548

1007 pcs: $0.47

5016 pcs: $0.431

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.783

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EDS10SGRNTU04Q

Part Number	EDS10SGRNTU04Q	Manufacturer	Agastat Relays / TE Connectivity
Description	END STACK DIP 10P G RECESS TUBE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39566 pcs	Data sheet	EDS10SGRNTU04Q.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	EDS
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	1-2319848-0 450-2634	Operating Temperature	-20°C ~ 85°C
Number of Positions	10	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Length	0.996" (25.30mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.134" (3.40mm)	Features	-
Electrical Life	2,000 Cycles	Detailed Description	Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Current Rating	25mA	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit	SPST
Body Material	Polyamide (PA), Nylon	Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
