HD36-24-23PE-059

Agastat Relays / TE Connectivity

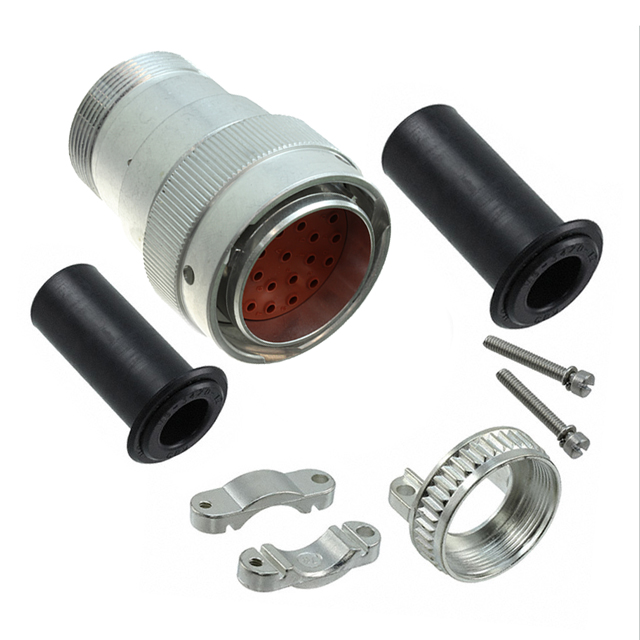

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HD36-24-23PE-059
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PLUG HSNG MALE 23POS INLINE
Datasheets:	1.HD36-24-23PE-059.pdf 2.HD36-24-23PE-059.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2661 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2661 pcs

Reference Price (In US Dollars)

1 pcs: $12.82

10 pcs: $11.572

25 pcs: $11.087

50 pcs: $10.394

100 pcs: $10.048

250 pcs: $9.494

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$12.82

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HD36-24-23PE-059

Part Number	HD36-24-23PE-059	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PLUG HSNG MALE 23POS INLINE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2661 pcs	Data sheet	1.HD36-24-23PE-059.pdf 2.HD36-24-23PE-059.pdf
Type	For Male Pins	Shielding	Unshielded
Shell Size, MIL	-	Shell Size - Insert	24-23
Shell Material	Aluminum	Shell Finish	-
Series	HD30	Packaging	Bulk
Other Names	1734-1706 HD36-24-23PE-059-ND	Orientation	Keyed
Operating Temperature	-55°C ~ 125°C	Number of Positions	23
Note	Contacts Not Included	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Material Flammability Rating	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	Polyetherimide (PEI)
Ingress Protection	IP67 - Dust Tight, Waterproof	Includes	-
Housing Color	Silver	Features	Backshell, Cable Clamp
Fastening Type	Bayonet Lock	Detailed Description	23 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp
Coupling Nut Material, Plating	Aluminum	Coupling Nut Diameter	1.942" (49.32mm)
Contact Type	Crimp	Contact Size	16
Contact Shape	Circular	Connector Type	Plug Housing
