OSA-SS-224DM3,000

Agastat Relays / TE Connectivity

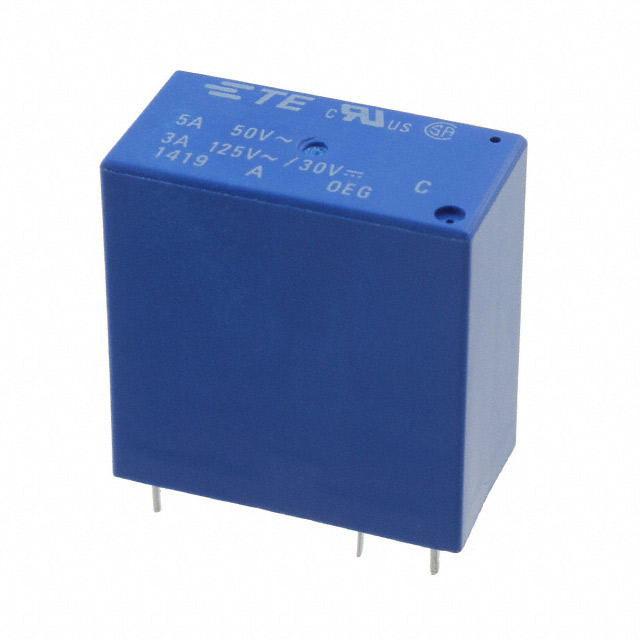

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OSA-SS-224DM3,000
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPST 3A 24V
Datasheets:	OSA-SS-224DM3,000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 39367 pcs

Reference Price (In US Dollars)

1 pcs: $0.892

10 pcs: $0.836

25 pcs: $0.743

50 pcs: $0.706

100 pcs: $0.669

250 pcs: $0.595

500 pcs: $0.557

1000 pcs: $0.52

5000 pcs: $0.502

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.892

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OSA-SS-224DM3,000

Part Number	OSA-SS-224DM3,000	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPST 3A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39367 pcs	Data sheet	OSA-SS-224DM3,000.pdf
Turn On Voltage (Max)	18 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	240VAC, 30VDC - Max
Series	OSA, OEG	Release Time	10ms
Relay Type	General Purpose	Packaging	Tray
Other Names	5-1419124-9 OSA-SS-224DM3,000-ND PB2174	Operating Temperature	-30°C ~ 60°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Flux Protection	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Contact Rating (Current)	3A	Contact Material	Silver Alloy
Contact Form	DPST-NO (2 Form A)	Coil Voltage	24VDC
Coil Type	Non Latching	Coil Resistance	1.1 kOhms
Coil Power	540 mW	Coil Current	22.5mA
