PT271012

Agastat Relays / TE Connectivity

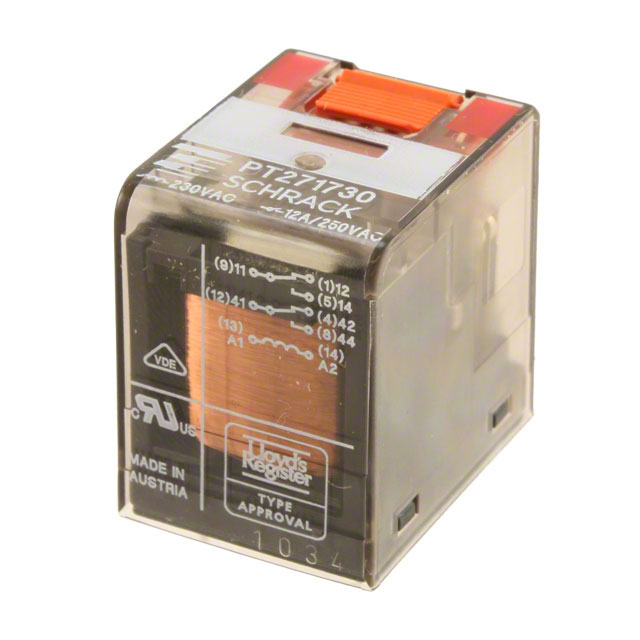

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT271012
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 12A 12V
Datasheets:	PT271012.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9885 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9885 pcs

Reference Price (In US Dollars)

1 pcs: $3.66

10 pcs: $3.43

25 pcs: $3.049

50 pcs: $2.896

100 pcs: $2.744

250 pcs: $2.439

500 pcs: $2.286

1000 pcs: $2.134

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.66

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT271012

Part Number	PT271012	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 12A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9885 pcs	Data sheet	PT271012.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	400VAC - Max
Series	PT, SCHRACK	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	5-1419111-2 PB2294 PT271012-ND	Operating Temperature	-40°C ~ 70°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Mechanical Indicator, Test Button	Detailed Description	General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
Contact Rating (Current)	12A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPDT (2 Form C)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	192 Ohms
Coil Power	750 mW	Coil Current	62.5mA
