XT424524

Agastat Relays / TE Connectivity

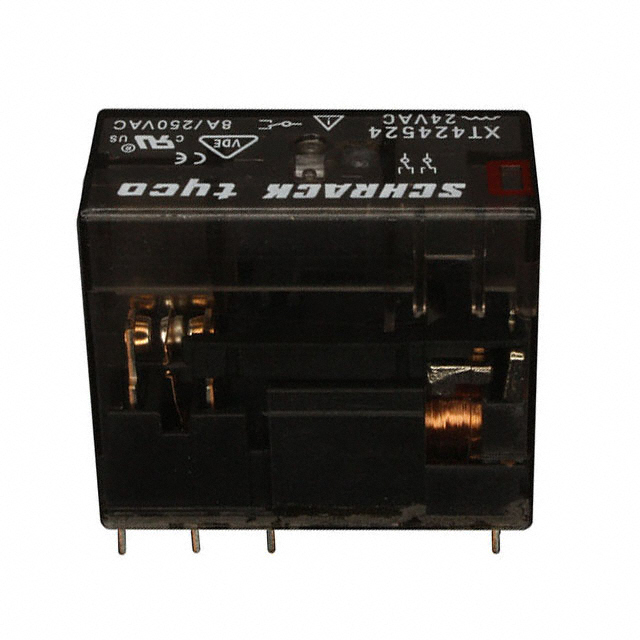

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XT424524
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 8A 24V
Datasheets:	1.XT424524.pdf 2.XT424524.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15378 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15378 pcs

Reference Price (In US Dollars)

1 pcs: $2.494

10 pcs: $2.339

30 pcs: $2.079

50 pcs: $1.975

100 pcs: $1.871

250 pcs: $1.663

500 pcs: $1.559

1000 pcs: $1.455

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.494

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XT424524

Part Number	XT424524	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 8A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15378 pcs	Data sheet	1.XT424524.pdf 2.XT424524.pdf
Turn On Voltage (Max)	18 VAC	Turn Off Voltage (Min)	3.6 VAC
Termination Style	Plug In	Switching Voltage	400VAC - Max
Series	XT, SCHRACK	Release Time	6ms
Relay Type	General Purpose	Packaging	Tube
Other Names	1887201-3 PB1198	Operating Temperature	-40°C ~ 70°C
Operate Time	9ms	Mounting Type	Socketable
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Insulation - Class F
Detailed Description	General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable	Contact Rating (Current)	8A
Contact Material	Silver Nickel (AgNi)	Contact Form	DPDT (2 Form C)
Coil Voltage	24VAC	Coil Type	Non Latching
Coil Resistance	350 Ohms	Coil Power	0.6 VA
Coil Current	31.6mA
