TVHS-2.5-302

AlfaMag Electronics (AMGIS)

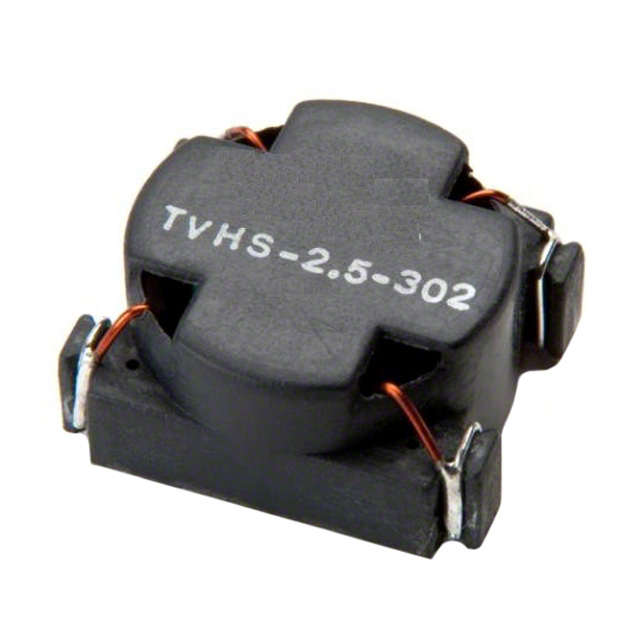

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TVHS-2.5-302
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	CMC 3MH 2.5A 2LN SMD
Datasheets:	TVHS-2.5-302.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18955 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18955 pcs

Reference Price (In US Dollars)

220 pcs: $1.935

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.935

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TVHS-2.5-302

Part Number	TVHS-2.5-302	Manufacturer	AlfaMag Electronics (AMGIS)
Description	CMC 3MH 2.5A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18955 pcs	Data sheet	TVHS-2.5-302.pdf
Voltage Rating - DC	-	Voltage Rating - AC	1500V (1.5kV)
Size / Dimension	0.760" L x 0.662" W (19.31mm x 16.82mm)	Series	TVH
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Horizontal, 4 PC Pad	Other Names	TVHS25302 TVS-2.5-302 TVS-2.5-302-ND
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	3mH @ 10kHz
Height (Max)	0.390" (9.90mm)	Filter Type	-
Features	-	Detailed Description	3mH @ 10kHz 2 Line Common Mode Choke Surface Mount 2.5A DCR 80 mOhm
DC Resistance (DCR) (Max)	80 mOhm	Current Rating (Max)	2.5A
Approvals	-
