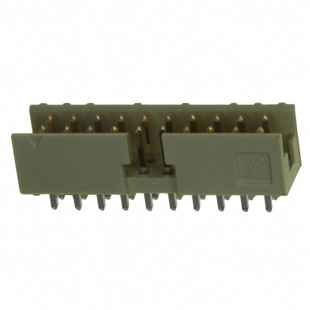

Part Number | 10075025-G01-20ULF | Manufacturer | Amphenol FCI |
---|---|---|---|
Description | CONN HEADER 20PS DL STR 2MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 36200 pcs | Data sheet | 10075025-G01-20ULF.pdf |
Voltage Rating | 200V (AC/DC) | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Minitek® | Row Spacing - Mating | 0.079" (2.00mm) |
Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
Overall Contact Length | - | Other Names | 10075025G0120ULF 609-2942 |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 20 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
Insulation Height | 0.220" (5.60mm) | Insulation Color | Natural |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 20 position 0.079" (2.00mm) |
Current Rating | 2A (AC/DC) | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.079" (2.00mm) | Contact Length - Mating | 0.157" (4.00mm) |
Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
Connector Type | Header | Applications | - |
