MDB-E09SA-700

Amphenol Commercial Products

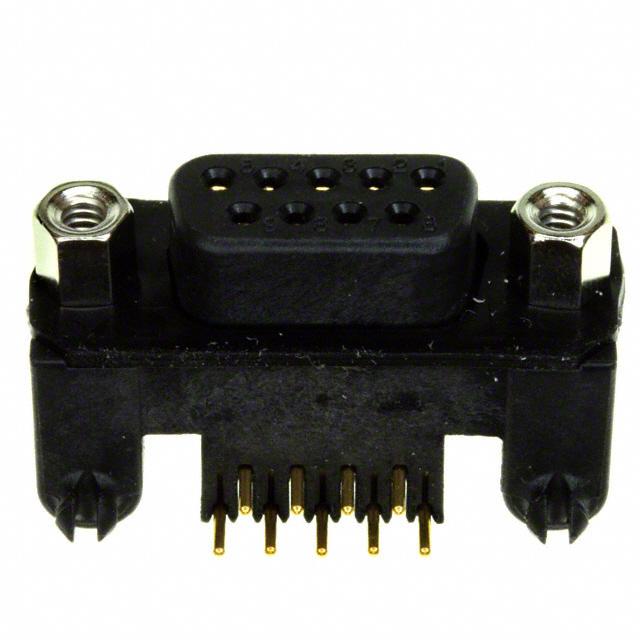

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MDB-E09SA-700
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN D-SUB RCPT 9POS R/A SOLDER
Datasheets:	1.MDB-E09SA-700.pdf 2.MDB-E09SA-700.pdf 3.MDB-E09SA-700.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4519 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4519 pcs

Reference Price (In US Dollars)

1 pcs: $7.348

10 pcs: $6.823

25 pcs: $6.123

60 pcs: $5.948

120 pcs: $5.249

300 pcs: $4.899

540 pcs: $4.794

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.348

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MDB-E09SA-700

Part Number	MDB-E09SA-700	Manufacturer	Amphenol Commercial Products
Description	CONN D-SUB RCPT 9POS R/A SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4519 pcs	Data sheet	1.MDB-E09SA-700.pdf 2.MDB-E09SA-700.pdf 3.MDB-E09SA-700.pdf
Wire Gauge	-	Voltage Rating	125V
Termination	Solder	Shell Size, Connector Layout	1 (DE, E)
Shell Material, Finish	Zinc, Nickel Plated	Series	MDB
Packaging	Tray	Other Names	MDBE09SA700
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions	9	Mounting Type	Panel Mount, Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Housing Material	Thermoplastic	Flange Feature	Mating Side, Female Screwlock (4-40)
Features	Board Lock	Detailed Description	9 Position D-Sub Receptacle, Female Sockets Connector
Current Rating	5A	Contact Type	Signal
Contact Material	Copper Alloy	Contact Form	-
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	Receptacle, Female Sockets	Connector Style	D-Sub
Color	Black	Backset Spacing	0.318" (8.08mm)
