SFW24R-2STE1LF

Amphenol FCI

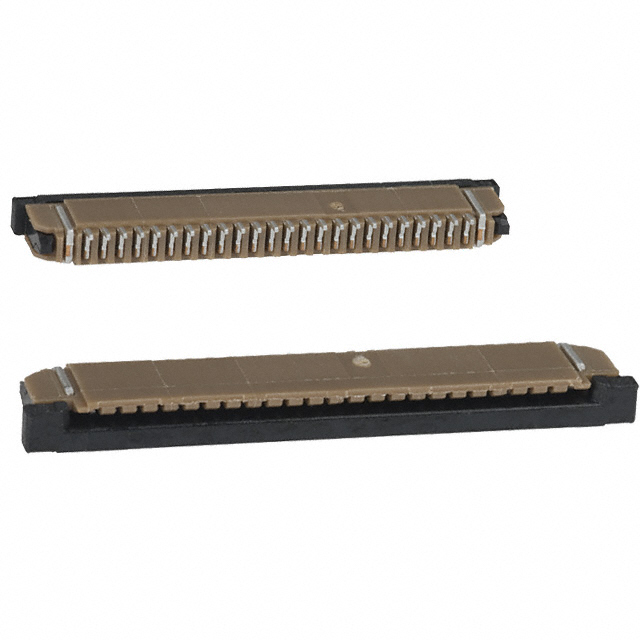

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFW24R-2STE1LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN FFC FPC TOP 24POS 1MM R/A
Datasheets:	SFW24R-2STE1LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72061 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72061 pcs

Reference Price (In US Dollars)

1 pcs: $0.506

10 pcs: $0.458

25 pcs: $0.43

50 pcs: $0.412

100 pcs: $0.393

250 pcs: $0.356

500 pcs: $0.327

1000 pcs: $0.281

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.506

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFW24R-2STE1LF

Part Number	SFW24R-2STE1LF	Manufacturer	Amphenol FCI
Description	CONN FFC FPC TOP 24POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72061 pcs	Data sheet	SFW24R-2STE1LF.pdf
Voltage Rating	100V	Termination	Solder
Series	SFW-R	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	609-1920-1
Operating Temperature	-55°C ~ 105°C	Number of Positions	24
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled	Housing Color	Brown
Height Above Board	0.106" (2.70mm)	Flat Flex Type	FFC, FPC
Features	Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm, 0.33mm
Detailed Description	24 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin	Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered	Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Color	Black
