142191

Amphenol Connex (Amphenol RF)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	142191
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMB JACK STR 50 OHM SOLDER
Datasheets:	142191.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11926 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11926 pcs

Reference Price (In US Dollars)

1 pcs: $2.437

10 pcs: $2.336

25 pcs: $2.133

50 pcs: $2.031

100 pcs: $1.93

250 pcs: $1.727

500 pcs: $1.625

1000 pcs: $1.422

2500 pcs: $1.351

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.437

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 142191

Part Number	142191	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMB JACK STR 50 OHM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11926 pcs	Data sheet	142191.pdf
Voltage Rating	335V	Shield Termination	Crimp
Series	-	Packaging	Bulk
Other Names	ACX1298	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	0.3dB	Ingress Protection	-

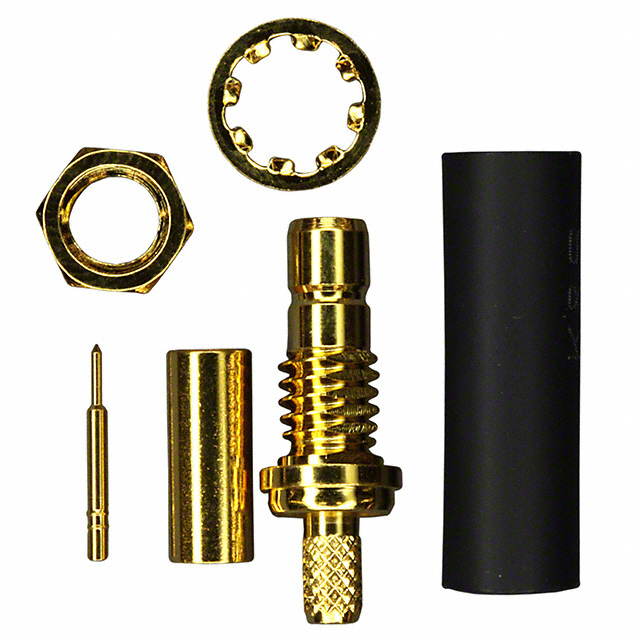

Includes	6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut	Impedance	50 Ohm
Housing Color	Gold	Frequency - Max	4GHz
Features	-	Fastening Type	Snap-On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	SMB Connector Jack, Male Pin 50 Ohm Panel Mount Solder
Contact Termination	Solder	Connector Type	Jack, Male Pin
Connector Style	SMB	Center Contact Plating	Gold
Center Contact Material	Brass	Cable Group	RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Material	Brass	Body Finish	Gold
