302114

Amphenol Connex (Amphenol RF)

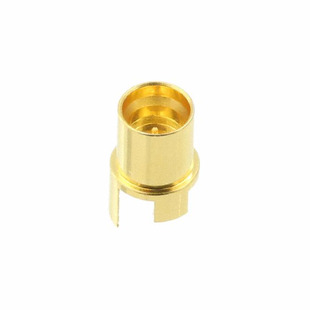

Image may be representation. See specifications for product details.

Product Overview

Part Number:	302114
Manufacturer/Brand:	Amphenol Connex (Amphenol RF)
Product description	CONN SMP RCPT STR 50OHM EDGE MNT
Datasheets:	302114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9194 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9194 pcs

Reference Price (In US Dollars)

1 pcs: $3.751

10 pcs: $3.588

25 pcs: $3.262

50 pcs: $3.099

100 pcs: $3.017

250 pcs: $2.691

500 pcs: $2.528

1000 pcs: $2.235

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.751

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 302114

Part Number	302114	Manufacturer	Amphenol Connex (Amphenol RF)
Description	CONN SMP RCPT STR 50OHM EDGE MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9194 pcs	Data sheet	302114.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	-	Packaging	Bulk
Other Names	ACX2517	Operating Temperature	-65°C ~ 165°C
Number of Ports	1	Mounting Type	Board Edge, End Launch
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	-	Impedance	50 Ohm
Housing Color	Gold	Frequency - Max	26.5GHz
Features	Limited Detent	Fastening Type	Snap-On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	SMP Connector Receptacle, Male Pin 50 Ohm Board Edge, End Launch Solder
Contact Termination	Solder	Connector Type	Receptacle, Male Pin
Connector Style	SMP	Center Contact Plating	Gold
Center Contact Material	Brass	Cable Group	-
Body Material	Beryllium Copper	Body Finish	Gold
