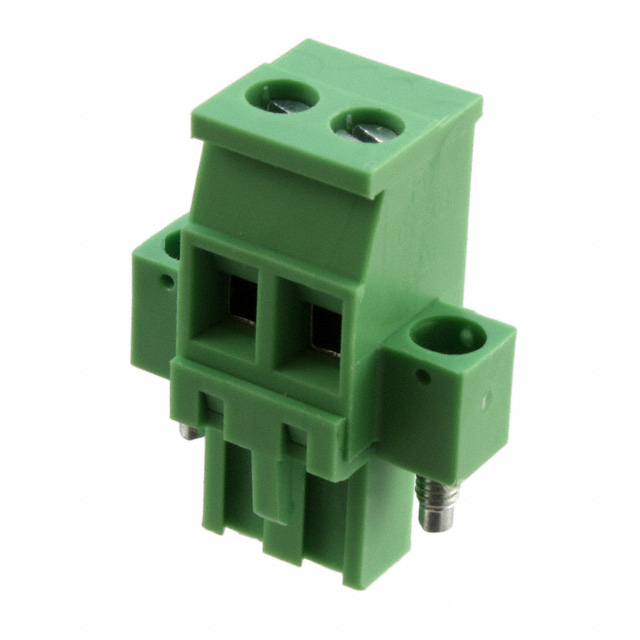

Part Number | 20020009-H021B01LF | Manufacturer | Anytek (Amphenol Anytek) |
---|---|---|---|
Description | TERM BLOCK PLUG 2POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 64071 pcs | Data sheet | |
Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 1-2.5mm² |
Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 300V |
Type | Plug, Female Sockets | Torque - Screw | 0.4 Nm (3.5 Lb-In) |
Termination Style | Screw - Rising Cage Clamp | Series | 02-508 |
Screw Size | M3 | Positions Per Level | 2 |
Plug Wire Entry | 90° | Pitch | 0.200" (5.08mm) |
Packaging | Bulk | Other Names | 20020009H021B01LF 609-4109 |
Operating Temperature | -40°C ~ 115°C | Number of Positions | 2 |
Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.024" (26.01mm) |
Ingress Protection | - | Housing Material | Thermoplastic Resin |
Header Orientation | - | Features | Mating Flange, Retention Latches (Wire Side) |
Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) | Current - UL | 12A |
Current - IEC | - | Contact Tail Length | - |
Contact Mating Finish | Tin | Contact Material | Copper Alloy |
Color | Green |
