Anytek (Amphenol Anytek)

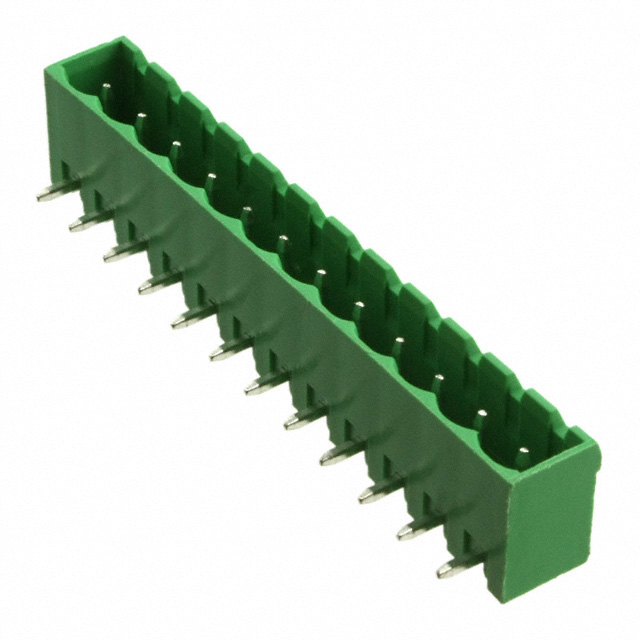

| Part Number | OQ1271510000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70966 pcs | Data sheet | OQ1271510000G.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | 06-500 |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 20020110-G121A01LF 20020110G121A01LF 609-3872 OQ1271510000G-ND OQ12715100J0G OQ12715100J0G-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 12A |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
